Electric Heating

/

/

Select the Right Product for Your Application

Electric Heating Products & Solutions

• Heating Cables & Tapes
  For surface heating, pipe tracing, and temperature maintenance.

• Self-Regulating Heating Cables
  Automatically adjust output based on ambient temperature – ideal for freeze protection and energy efficiency.

• Mineral-Insulated (MI) Trace Heaters
  High-performance solutions for extreme temperatures and harsh environments.

• Heated Hoses
  Maintain constant temperature for fluid and gas transport in dosing, filling, or sampling applications.

• Heating Mats & Jackets
  Flexible and efficient solutions for tanks, vessels, and complex shapes.

• Drum & Gas Cylinder Heaters
  Safe and effective heating of viscous materials and compressed gas bottles.

• Control & Monitoring Systems
  Intelligent temperature control, automation, and safety monitoring for trace heating networks.

• Solutions for Hazardous Areas (Ex)
  Certified electrical heating components for use in ATEX/IECEx classified zones.

Applications

• Pipe heat tracing & frost protection

• Process temperature maintenance

• Electrical heat tracing in hazardous (Ex) areas

• Dosing systems and fluid transport

• Sample gas analysis and emissions control

• Roof & gutter de-icing

• Railway switch heating

• Specialty heating in food production (e.g., chocolate)

Industries

• Oil & Gas

• Chemical & Petrochemical

• Energy & Power Generation

• Food & Beverage Processing

• Research & Laboratory

• Plant Engineering & Industrial Automation

• Infrastructure & Construction

• Building Services & HVAC

Trace Heating Cables and Tapes

Empower your business to run smoothly and effectively

ELP/PFA

ELP/PFA – Durable fluoropolymer cable, 15/30/45/60 W/m (230 VAC), –60 to 260 °C, cut-to-length with high chemical resistance for temperature maintenance up to 200 °C.

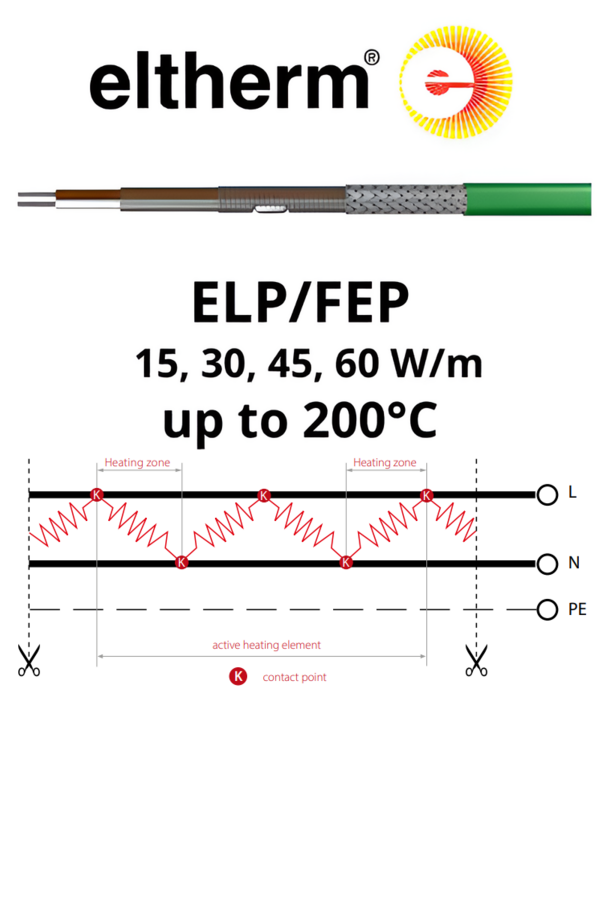

ELP/FEP

ELP/FEP – Flexible fluoropolymer cable, 15/30/45/60 W/m (230 VAC), –60 to 200 °C, cut-to-length with chemical resistance for temperature maintenance up to 195 °C.

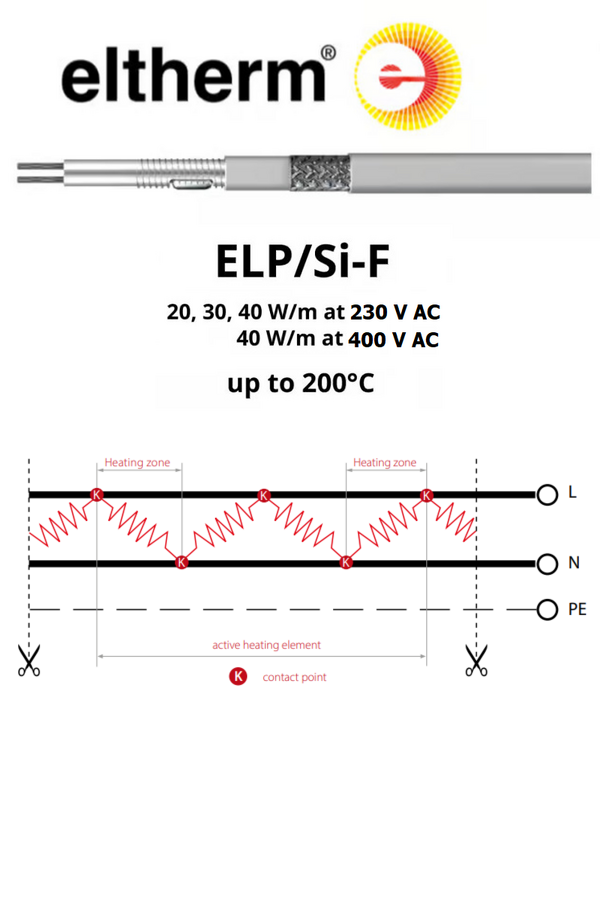

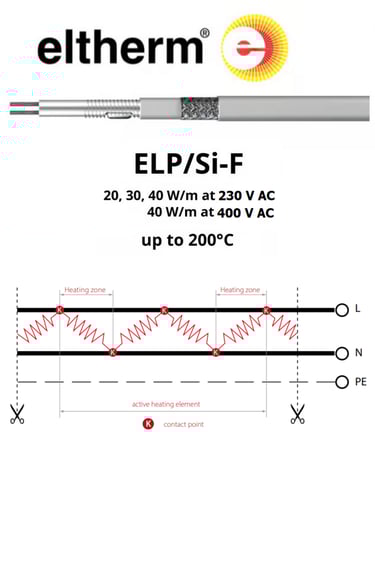

ELP/Si-F

ELP/Si-F – Flexible silicone cable, 20/30/40 W/m (230 VAC) or 40 W/m (400 VAC), –70 to 200 °C, cut-to-length for cold climates and temp. maintenance up to 150 °C

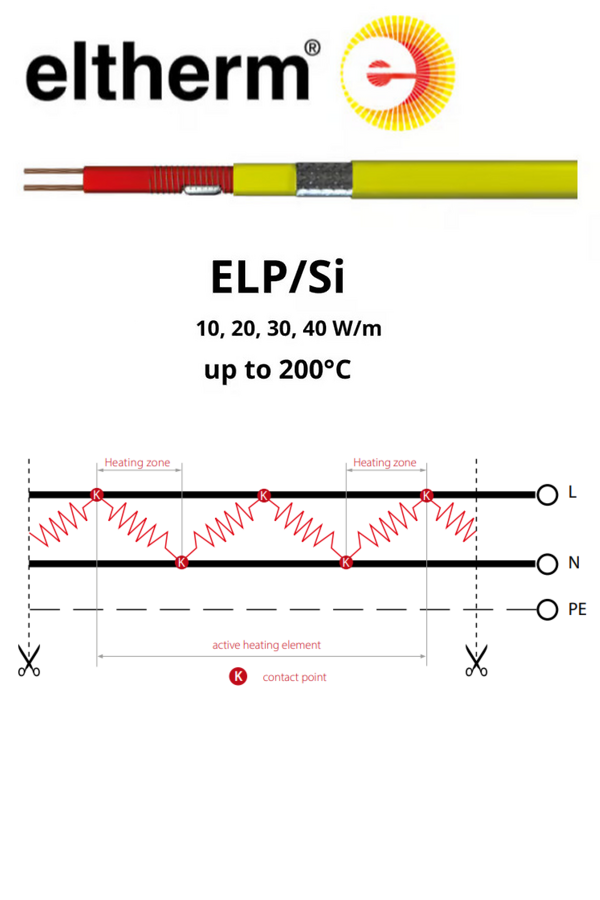

ELP/Si

ELP/Si – Silicone-insulated cable, 10/20/30/40 W/m (230 VAC), –60 to 200 °C, cut-to-length with flexibility for temperature maintenance up to 150 °C.

EL-Rail

EL-Rail flat cable with six fluoropolymer-insulated heaters in silicone jacket — efficient, durable rail heating with low installation and operating costs.

ELKM-AE

Ideal for tracing apparatus, pipes, valves, and vessels — allows compact installation on small components thanks to low bending radius.

ELP parallel resistance

Constant wattage heating cables with resistance wire

• Single end power input

• Can be cut off the roll

• Constant power output per meter

• High chemical resistance (ELP-PFA and ELP-FEP)

• UV resistance (ELP-PFA and ELP-FEP)

How it works ?

Reliable – Powerful – Efficient

• Self-regulating heating cables
  Automatically adjust their output based on ambient temperature. As resistance rises, power decreases and vice versa, preventing overheating without additional regulation. Depending on design, they cover temperature ranges up to 250 °C.

• Resistance heating cables with temperature control
  Parallel or series resistance cables require external controllers and thermostats. The control system switches the heating on/off according to ambient conditions. Suitable for applications demanding high flexibility and precise performance.

• Mineral insulated heating cables
  Designed for extreme environments with temperatures up to 1000 °C and exceptional chemical resistance. Ideal where plastic or self-regulating cables are not sufficient.

Types of Electrical Pipe Heat Tracing

Advanced heat tracing technology converts electricity into consistent, efficient heat—delivering safety, reliability, and energy savings across your applications.

Resistance heating cables with temperature control

Constant wattage heating cable with parallel resistance wires, serial heating cable and heating tape

Heat is produced when an electric current flows through a specially designed conductive material with high electrical resistance. According to Ohm’s law, the heat output depends on the material’s resistance (determined by its specific resistivity, cross-section, and length) as well as the applied current and voltage. The current must remain below levels that could exceed the conductor’s melting point or the insulating material’s maximum temperature. To regulate power output, multiple resistances can be arranged in parallel or series configurations.

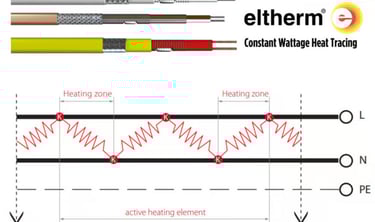

Parallel Resistance Heating Cable

Parallel Constant-Wattage Heating Cables (e.g., ELP/Si)

Parallel constant-wattage heating cables consist of two supply conductors embedded in primary insulation, wrapped with the heating conductor, and surrounded by a second insulation. A protective braid and durable outer jacket ensure maximum safety.

These cables provide uniform heat output per meter, feature single-end power feed for easy installation, and deliver reliable performance across industrial and process applications. Typical uses include freeze prevention and temperature maintenance in pipes, vessels, and valves, for example in the food industry.

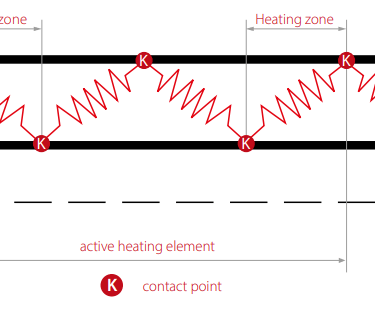

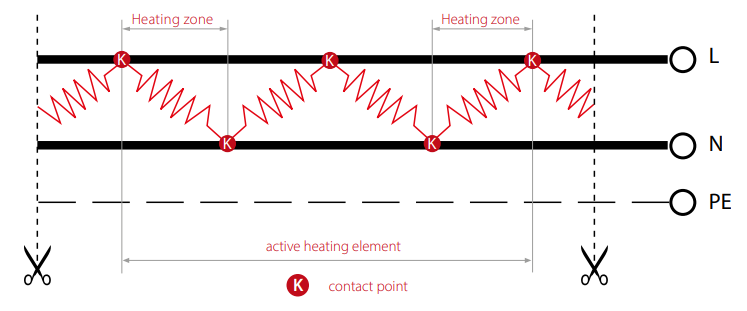

The parallel resistance heating cable is made up of active heating zones, defined by the contact spacing. Electrical continuity exists along the heating zones.
The cable can be cut to the required length for each application. Sections beyond the last active zone remain inactive and can be used as cold leads.
For accurate system design, one full contact spacing should be added per heating circuit.

The required nominal power is calculated based on supply voltage, ambient temperature, and target maintenance temperature.

Contact us to find the ideal solution for your application.
