Slide Gate Valves

Slide Gate Valves for Powders, Granules and Bulk Solids

Slide gate valves designed for gravity isolation and controlled discharge of powdered, granular, and coarse bulk materials under silos, bins, and hoppers.

Robust construction in carbon steel, stainless steel, or cast materials, equipped with wear-resistant sliding blade and dust-tight sealing system for reliable operation.

Nominal sizes: DN150–800 (larger sizes available upon request)

Available configurations:

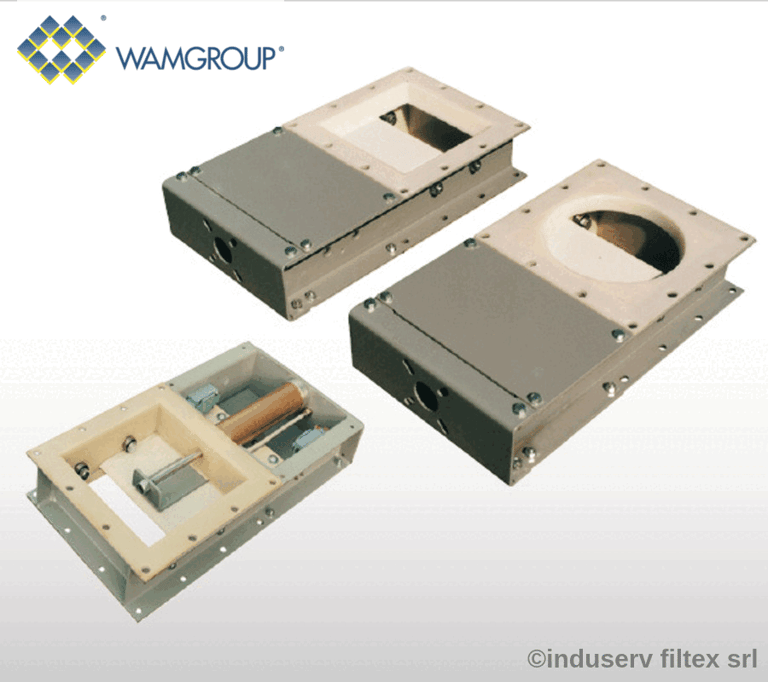

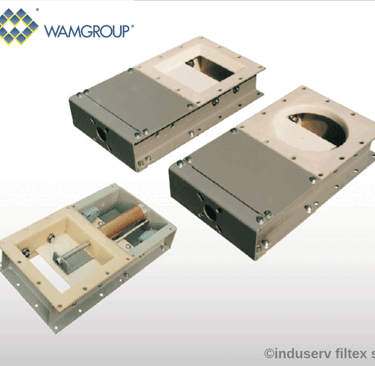

• Square body with square, rectangular, or circular open cross section

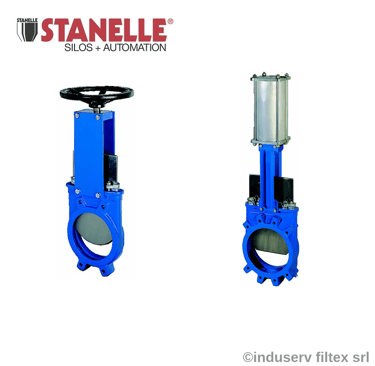

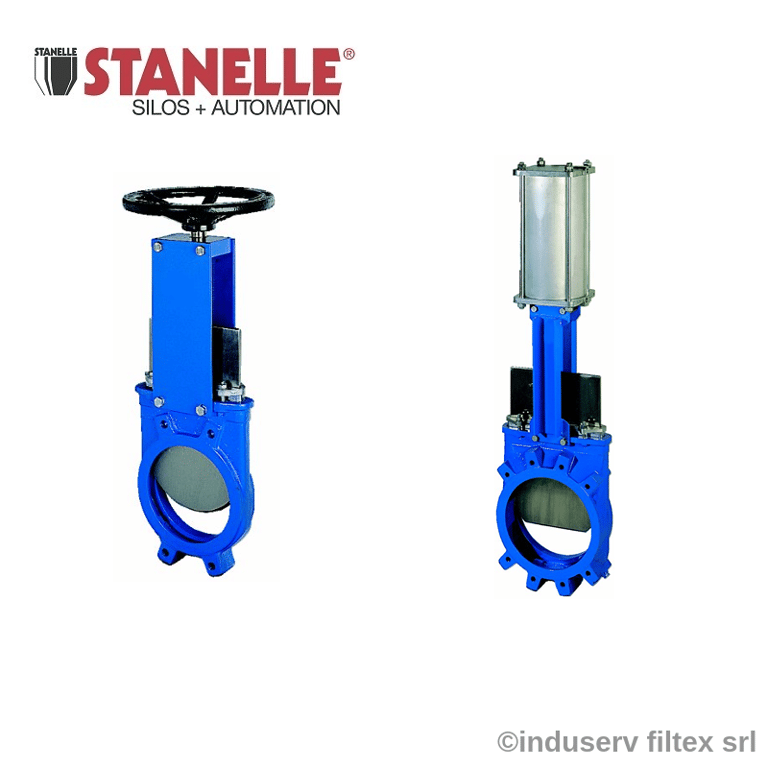

• Round body design for in-line or sandwich installation

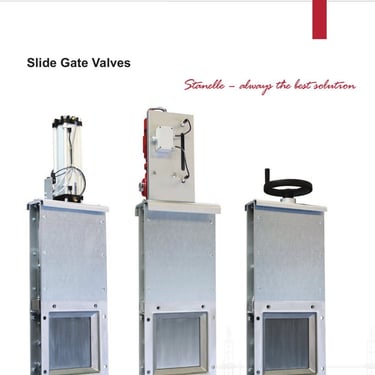

• Pneumatic, Manual or Electric motorized drive Actuator


Food-grade versions with compliant materials and sealing solutions are available.
ATEX-certified versions available upon request.

Main Partners:

• WAMGROUP S.p.A.

• MiX Srl

• SCUTTI S.r.l.

• STANELLE Silos + Automation GmbH

• …and more

Technical Specification

Explore detailed product specifications and expand your technical knowledge of bulk handling valves for powders and granules used in gravity discharge, flow control, and isolation applications across industrial processes.

General Operation

Slide Gate Valves operate via a linear sliding blade that moves across the material flow path. When closed, the blade presses against sealing elements to ensure tight shut-off and minimize dust leakage. When open, the valve allows free passage of material. Depending on the configuration, the valve may be designed for unidirectional pressure, requiring correct installation orientation to ensure optimal sealing and reduced wear.

Benefits

• Reliable Shut-Off Performance even under heavy material loads

• Dust-Tight Sealing improving environmental safety and reducing product loss

• Robust Construction suitable for abrasive and coarse materials

• Flexible Design Options for various geometries and installation conditions

• Ease of Maintenance with accessible and adjustable sealing components

• Compact Design enabling integration in limited installation spaces

Available Options upon Request

• Heavy-duty execution for abrasive or coarse bulk materials

• Food-grade design with compliant materials and finishes

• ATEX-certified versions for explosive dust environments

• Custom sizes, shapes (round, square, rectangular) and flange configurations

• Integrated or external pneumatic and electric actuation systems

• Special sealing materials for high temperature or aggressive products

Technical Specifications

Description

Slide Gate Valves for Powders, Granules and Bulk Solids — carbon steel, stainless steel, or cast Body materials

Slide Gate Valves are used to isolate or regulate the flow of bulk materials in gravity-fed or conveying systems. Designed with durable materials and optimized sealing solutions, they ensure consistent operation even under high loads and abrasive conditions. Available in multiple sizes and configurations, they can be adapted to a wide range of installation requirements.

Function

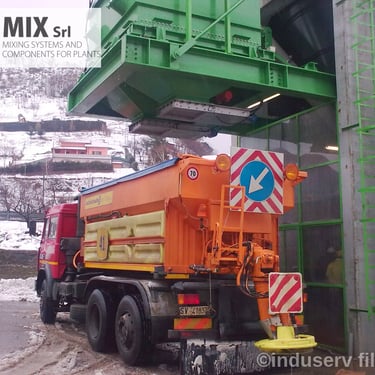

The valves are installed at silo and hopper outlets, conveyor discharge points, or loading systems where reliable shut-off of material flow is required. They provide effective isolation with high dust-tightness, ensuring process safety and minimizing material loss.

Features / Technical Data

Nominal Sizes:

• Square body: 150 - 200 - 250 - 300 - 350 - 400 - 500 - 600 - 700 - 800 mm

• Round Gate Valve: DN 50 - 65 - 80 – 100 – 125 – 150 – 200 – 250 – 300 -350 – 400 - 450 - 500 - 600 mm

Body & Flange Configurations:

• Carbon steel, stainless steel, or cast materials depending on application requirements.

• One-piece or modular frame designs, including square, rectangular, and circular cross-sections

Sealing & Pressure:

• Dust-tight design suitable for gravity applications.

• Frame partly coated with engineering polymer composite

• Packing seals or advanced low-friction sealing elements ensuring dust-tight operation and easy adjustment with replaceable sealing elements for simplified maintenance.

Materials:

• Carbon steel, stainless steel, or cast materials valve body

• Sliding gate in carbon steel or stainless steel, with wear-resistant options for abrasive materials

• Packing seals or advanced low-friction sealing elements ensuring dust-tight operation and easy adjustment for standard or food-grade applications

Interfaces & Standards:

• Flanged or in-line (sandwich) mounting, compatible with standard DIN/ANSI connections

• Compatible with manual, pneumatic, or electric actuation (supplied separately)

Industries and Applications

• Bulk material storage and handling (silos, hoppers, bins)

• Cement, lime, and construction materials

• Mining and mineral processing

• Chemical and industrial processing

• Food and feed production

• Plastics and recycling industries
